Face Recognition Body Temperature Detection Terminal

(8-inch ultra-thin) (Model No:CSXT-FR1)

Product Introduce

Product presentation

The integrative terminal of face recognition uses the world's leading face detection and recognition algorithm, runs it in high performance embedded platform, coordinates 200W pixel camera, realizes face detection, face tracking, and face recognition. And it can present the corresponding feedback on the screen. the farthest can recognize the human face as far as 1.5 meters, and face tracking and detection takes about 20ms. Face feature extraction takes about 300ms; face comparison takes about 0.1ms.

And it has good robustness to light and wear glasses and so on. This product can be equipped with RFID card module, so the system can be realize to use card and face recognition. This product supports a variety of hardware functional interfaces (including: HDMI high-definition output, serial port input/output, network interface/ Wi-Fi access); It has a complete software interface (including: device management, personnel/photo management, record view, etc.).

At the same time, this product can connect with the company developed a variety of applications, such as: attendance system, access control system, visiting system, real name certification.

Application scene

Suitable for office area, gate passage, hotel, office building, school and other places where face recognition gate is needed.

Product Features

1. Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and high effect
2. Temperature measurement range 30-50 (℃) Accuracy ± 0.3 (℃), Detection distance is 0.5-1m.
3. Automatically identify unmasked personnel and provide real-time warning
4. Support mid-range temperature measurement and real-time warning of high temperature
5. Support temperature data SDK and HTTP protocol docking
6. Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information
7. Support binocular live detection, Real-time monitoring of cloud platform data
8. Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
9. Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB
10. Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux
11. 8-inch IPS HD display, Waterproof level is IP65, MTBF> 50000 H
12. Support 30,000 face comparison library and 500,000 face recognition records

Product Details

Three installation methods for free:

Desktop Installation Wall-mounted Floor Support Installation

The opening diameter of the gate is 35mm (reserved without increasing the gap)

Interface

Four kinds of Tripod for extra charge:

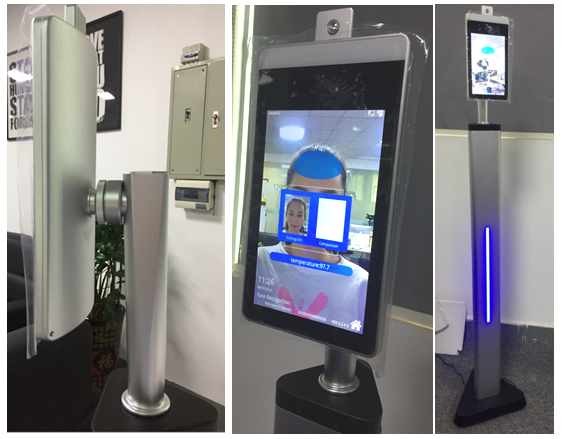

Real Product Photo

Product Size and Package 2PCS /Box Size/Weight: 40*32*28cm/ 6.85kg
