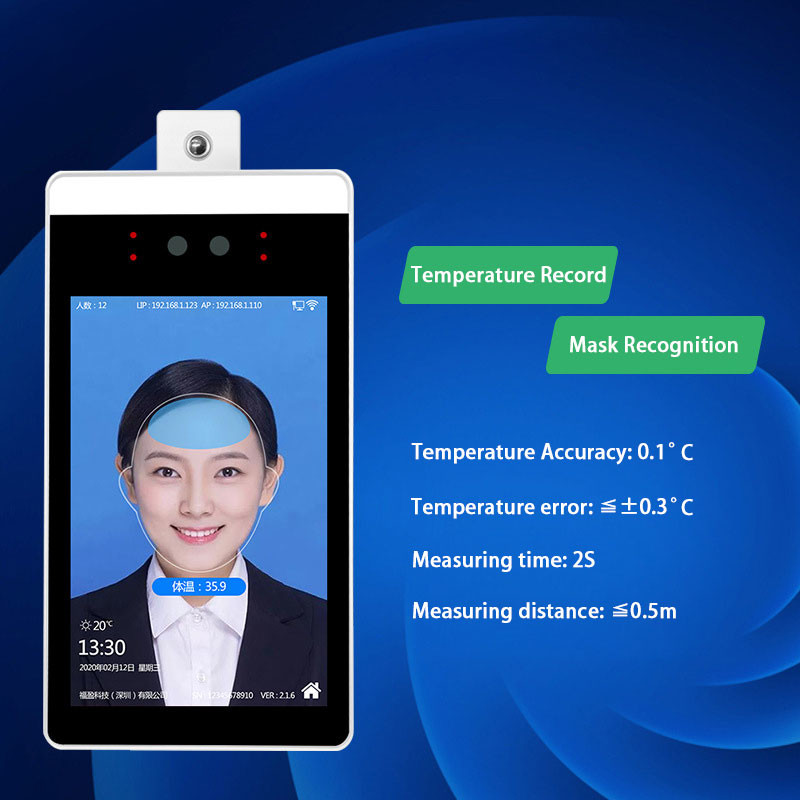

Face Recognition Body Temperature Detection Terminal
(8-inch ultra-thin) (Model No:CSXT-FR1)
Product Introduce
Human Body Temperature Measurement Detection Time Attendance Face
Recognition Terminal Access Control System
Product Advantage:
our own developed face tracking exposure algorithm(linear mode),
WDR≥110DB
own patent protected file storage system (Linux's original file
system)
used all glass material aspheric lens
adopted own top-class face recogntion algorithm
Stable quality control, all electronic components choosed from
first-line suppliers, such as Samsung brand memory and Flash
Hardware&software Customerized service, protect customer own
design and confidential data
In addition, We provide face recognition SDK for secondary
development, making it easier for partners who are professional at
face recognition algorithm and Face search APP design. Our
self-developed face recognition platform (FaceGateMngPlatform ) is
also available for partners who lack good enough development
capabilities
Product Features
AI facial recognition human body temperature measurement equipment
1. Display screen: 8 inches IPS LED screen
2. Resolution: 800x1280
3. Capacity: 30,000
4. Voice: English, Spanish, Italian, French, etc. can be
customized.
5. Type: wall mounted type, standard type, for access control door
type
6. Device size: 128x230x33mm
7. Pixel: 2 million
8. Working temperature: -20~70℃
9. Power supply: DC12V(±10%)
10. Temperature detect distance: 0.5-1.5m (0.5m is the best
distance)
Function 1: Face recognition
Function 2: Body temperature measure
Function 3: Fever detection
Function 4: High temperature alarm warning
Function 5: Wear mask recognition
Function 6: Attendance data
Function 7: Access control if needed
Product Specification
Camera
| Resolution | 2 million pixels |
| Camera Type | binocular wide dynamic camera |
| Aperture | F2.4 |
| Focusing distance | 50-200cm |
| White Balance | Auto |
| Photo flood light | LED and infrared double flood light |
Screen
| Screen size | 8.0 "IPS LCD Screen |
| Resolution | 800 × 1280 |
| Touch | optional support |
| Processor | NPU | RK3288 quad core (optional rk3399 six core, msm8953 eight core) |
| Storage | EMMC 8G |
| Function | Card reader | optional IC card reader/ID card |
| Face recognition | support detection and tracking of multiple people at the same time |
| Face Library | UP to 30,000 |
| 1:N face recognition | Support |
| 1:1 face comparison | Support |
| Stranger detection | Support |
| Identify distance configuration | Support |
| UI interface configuration | Support |
| Upgrade remotely | Support |
| Interface | Interfaces include device management, personnel / photo management, record query, etc. |
Deployment method | Support public cloud deployment, privatized deployment, LAN use, stand-alone use |
Infrared thermal imaging module
| Body temperature detection | support |
| Temperature detection distance | 2m (the best distance is 0.5m) |
| Temperature measurement accuracy | ≤± 0.3 oC |
| Temperature measurement range | 10 oC ~ 42 oC |
| Visitors model | support for normal temperature of visitors |
| Temperature alarm | support |
Product Details
Three installation methods for free:
Desktop Installation Wall-mounted Floor Support Installation
The opening diameter of the gate is 35mm (reserved without
increasing the gap)
Interface
Four kinds of Tripod for extra charge:
Real Product Photo
Product Size and Package 2PCS /Box Size/Weight: 40*32*28cm/ 6.85kg
Packing:
Retail Box. Accept customize packaging.
Shipping:
1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping
Methods.
We choose the best and safe packaging material to make sure your
orders won’t be damaged during delivery.
